1.Sollicitatie (Mariene stroomkabels):
De kabel is bedoeld voor stroom-, licht- en controlesystemen van schepen, benzineplatforms en offshore-gebouwen, en is ook beschikbaar voor de metallurgische industrie, chemische fabrieken, elektriciteitscentrales en mijnen enz.
2.normen(Marine Stroomkabels):
IEC 60092-350,IEC 60092-353,IEC 60332-3-22,IEC 60754,IEC 61034

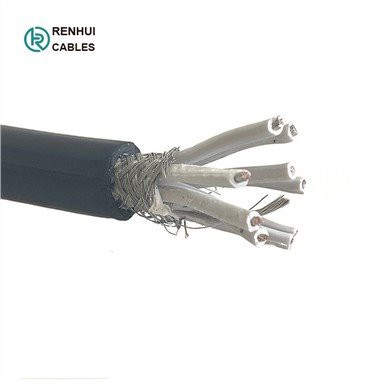

3.Kabelconstructie (Marine Stroomkabels):
1) Leider: Vertind of duidelijk koper, vastgelopen class2 IEC 60228
2) Isolatie: XLPE
3) Vulmiddel:
4) Binnenbekledingstape
5) Pantser: vertind of gewoon koperdraadvlechtwerk;
6) Buitenschede: LSZH/PO/CPE/PVC
4.Parameter (Marine Stroomkabels):
Aantal kernen × nominale dwarsdoorsnede (mm²) | CJPF/SC CJPJ/SC CJV/DA ,SA | CJ86/SC CJ85/SC CJ82/DA,SA | CJPF86/SC CJPJ85/SC CJV82/DA,SA CJPF96/SC CJPJ95/SC CJV92/DA,SA | |||||||
Berekende diameter (mm) | Berekende massa (kg/km) | Berekende diameter (mm) | Berekende massa (kg/km) | Berekende diameter (mm) | Berekende massa (kg/km) | |||||
naam | maximaal | naam | maximaal | naam | maximaal | CJPF86 CJPJ85 | CJPF96 CJPJ95 | |||
1*1 | 5.2 | 6.0 | 35 | 6.2 | 7.2 | 58 | 7.8 | 8.8 | 88 | 85 |
1*1.5 | 5.5 | 6.4 | 41 | 6.5 | 7.4 | 66 | 8.1 | 9.2 | 97 | 94 |
1*2.5 | 5.9 | 6.8 | 53 | 6.9 | 7.8 | 80 | 8.5 | 9.6 | 113 | 109 |
1*4 | 6.5 | 7.4 | 72 | 7.5 | 8.4 | 101 | 9.1 | 10.5 | 136 | 132 |
1*6 | 7.1 | 8.0 | 94 | 8.1 | 9.2 | 127 | 9.7 | 11.0 | 164 | 159 |
1*10 | 8.0 | 9.0 | 137 | 9.2 | 10.5 | 178 | 10.6 | 12.0 | 215 | 209 |
1*16 | 9.2 | 10.5 | 202 | 10.2 | 11.5 | 245 | 11.8 | 13.0 | 290 | 284 |
1*25 | 10.9 | 12.0 | 301 | 12.1 | 13.5 | 358 | 13.7 | 15.0 | 410 | 403 |
1*35 | 12.4 | 14.0 | 408 | 13.4 | 15.0 | 467 | 15.7 | 17.0 | 567 | 554 |
1*50 | 13.8 | 15.5 | 559 | 15.5 | 17.0 | 666 | 17.3 | 19.0 | 741 | 727 |
1*70 | 16.0 | 17.5 | 768 | 17.5 | 19.0 | 884 | 19.5 | 21.0 | 977 | 961 |
1*95 | 17.9 | 19.5 | 1012 | 19.6 | 21.5 | 1152 | 21.4 | 23.0 | 1244 | 1227 |
1*120 | 19.9 | 21.5 | 1269 | 21.6 | 23.5 | 1424 | 23.6 | 25.5 | 1535 | 1516 |
1*150 | 22.1 | 24.0 | 1581 | 23.6 | 25.5 | 1742 | 25.8 | 28.0 | 1875 | 1853 |
1*185 | 24.5 | 26.5 | 1944 | 26.0 | 28.0 | 2123 | 28.4 | 30.5 | 2281 | 2257 |
1*240 | 27.6 | 29.5 | 2496 | 29.1 | 31.5 | 2698 | 31.7 | 34.0 | 2281 | 2860 |
1*300 | 30.2 | 32.5 | 3079 | 31.9 | 34.5 | 3315 | 34.3 | 37.0 | 3505 | 3476 |
1*400 | 33.9 | 36.5 | 4072 | 35.4 | 38.0 | 4321 | 38.7 | 41.5 | 4658 | 4614 |
2*1 | 7.9 | 9.0 | 63 | 9.1 | 10.5 | 103 | 10.5 | 12.0 | 139 | 134 |
2*1.5 | 8.5 | 9.6 | 76 | 9.7 | 11.0 | 120 | 11.1 | 12.5 | 158 | 152 |
2*2.5 | 9.5 | 10.5 | 104 | 10.5 | 12.0 | 149 | 12.3 | 13.5 | 200 | 194 |
2*4 | 10.7 | 12.0 | 141 | 11.9 | 13.5 | 197 | 13.5 | 15.0 | 248 | 241 |
2*6 | 12.1 | 13.5 | 192 | 13.1 | 14.5 | 249 | 15.4 | 17.0 | 347 | 335 |
2*10 | 13.9 | 15.5 | 279 | 15.6 | 17.0 | 387 | 17.4 | 19.0 | 463 | 449 |
2*16 | 16.1 | 17.5 | 411 | 17.6 | 19.0 | 528 | 19.6 | 21.5 | 621 | 605 |
2*25 | 19.7 | 21.5 | 620 | 21.4 | 23.0 | 774 | 23.4 | 25.5 | 884 | 865 |
2*35 | 22.5 | 24.5 | 836 | 24.2 | 26.0 | 1011 | 26.2 | 28.5 | 1135 | 1113 |
2*50 | 25.5 | 27.5 | 1152 | 27.2 | 29.5 | 1351 | 29.4 | 31.5 | 1502 | 1477 |
2*70 | 29.7 | 32.0 | 1577 | 31.4 | 33.5 | 1809 | 33.8 | 36.5 | 1996 | 1967 |
2*95 | 33.9 | 36.5 | 2102 | 35.4 | 38.0 | 2351 | 38.7 | 41.5 | 2688 | 2644 |
2*120 | 37.7 | 40.5 | 2624 | 39.4 | 42.0 | 2918 | 42.7 | 45.5 | 3290 | 3242 |
3*1 | 8.3 | 9.4 | 78 | 9.5 | 11.0 | 121 | 10.9 | 12.0 | 159 | 153 |
3*1.5 | 9.2 | 10.5 | 101 | 10.2 | 11.5 | 144 | 11.8 | 13.0 | 189 | 183 |
3*2.5 | 10.1 | 11.5 | 136 | 11.1 | 12.5 | 183 | 12.9 | 14.0 | 237 | 230 |
3*4 | 11.4 | 12.5 | 188 | 12.6 | 14.0 | 247 | 14.7 | 16.0 | 334 | 323 |
3*6 | 12.8 | 14.0 | 259 | 13.8 | 15.5 | 320 | 16.1 | 17.5 | 423 | 410 |
3*10 | 14.8 | 16.5 | 385 | 16.5 | 18.0 | 500 | 18.3 | 20.0 | 580 | 565 |
3*16 | 17.2 | 19.0 | 575 | 18.9 | 20.5 | 708 | 20.7 | 22.5 | 798 | 781 |
3*25 | 21.2 | 23.0 | 885 | 22.7 | 24.5 | 1040 | 24.9 | 27.0 | 1168 | 1147 |
3*35 | 24.2 | 26.0 | 1198 | 25.7 | 28.0 | 1375 | 28.1 | 30.5 | 1531 | 1507 |
3*50 | 27.5 | 29.5 | 1660 | 29.0 | 31.0 | 1861 | 31.6 | 34.0 | 2049 | 2022 |
3*70 | 32.0 | 34.5 | 2280 | 33.7 | 36.0 | 2529 | 36.3 | 39.0 | 2745 | 2714 |
3*95 | 36.5 | 39.0 | 3043 | 38.0 | 40.5 | 3311 | 41.5 | 44.5 | 3689 | 3642 |
3*120 | 40.6 | 43.5 | 3806 | 42.8 | 45.5 | 4225 | 45.8 | 49.0 | 4541 | 4489 |
3*150 | 45.3 | 48.5 | 4754 | 47.3 | 50.5 | 5200 | 50.7 | 54.0 | 5593 | 5534 |
3*185 | 50.2 | 53.5 | 5837 | 52.4 | 56.0 | 6356 | 55.8 | 59.5 | 6788 | 6724 |
4*1 | 9.2 | 10.5 | 100 | 10.2 | 11.5 | 143 | 11.8 | 13.0 | 188 | 182 |
4*1.5 | 10.0 | 11.0 | 124 | 11.0 | 12.5 | 171 | 12.8 | 14.0 | 225 | 218 |
4*2.5 | 10.9 | 12.0 | 170 | 12.1 | 13.5 | 227 | 14.2 | 15.5 | 311 | 300 |
4*4 | 12.6 | 14.0 | 243 | 13.6 | 15.0 | 302 | 15.9 | 17.5 | 404 | 391 |
4*6 | 14.0 | 15.5 | 329 | 15.7 | 17.5 | 438 | 17.5 | 19.0 | 515 | 501 |
4*10 | 16.4 | 18.0 | 502 | 18.1 | 20.0 | 630 | 19.9 | 21.5 | 716 | 700 |
4*16 | 19.0 | 20.5 | 751 | 20.5 | 22.5 | 890 | 22.7 | 24.5 | 1007 | 989 |
4*25 | 23.4 | 25.5 | 1147 | 25.1 | 27.0 | 1329 | 27.3 | 29.5 | 1469 | 1446 |
4*35 | 26.7 | 29.0 | 1557 | 28.4 | 30.5 | 1766 | 30.6 | 33.0 | 1923 | 1897 |
4*50 | 30.5 | 33.0 | 2179 | 32.0 | 34.5 | 2402 | 34.6 | 37.0 | 2608 | 2579 |
5*1 | 10.0 | 11.5 | 117 | 11.0 | 12.5 | 164 | 12.8 | 14.0 | 218 | 211 |
7*1 | 10.8 | 12.0 | 149 | 12.0 | 13.5 | 205 | 14.1 | 15.5 | 289 | 278 |
10*1 | 13.7 | 15.0 | 211 | 15.4 | 17.0 | 317 | 17.2 | 19.0 | 392 | 379 |
12*1 | 14.1 | 15.5 | 241 | 15.8 | 17.5 | 351 | 17.6 | 19.5 | 427 | 413 |
14*1 | 15.0 | 16.5 | 278 | 16.5 | 18.0 | 387 | 18.5 | 20.0 | 476 | 461 |
16*1 | 15.8 | 17.5 | 311 | 17.3 | 19.0 | 425 | 19.3 | 21.0 | 517 | 502 |
19*1 | 16.6 | 18.0 | 356 | 18.3 | 20.0 | 485 | 20.1 | 22.0 | 573 | 557 |
24*1 | 19.5 | 21.0 | 450 | 21.2 | 23.0 | 602 | 23.2 | 25.0 | 712 | 693 |
27*1 | 19.9 | 21.5 | 494 | 21.6 | 23.5 | 649 | 23.6 | 25.5 | 760 | 741 |
30*1 | 20.8 | 22.5 | 548 | 22.3 | 24.0 | 700 | 24.5 | 26.5 | 826 | 806 |
33*1 | 21.6 | 23.5 | 595 | 23.1 | 25.0 | 752 | 25.3 | 27.5 | 882 | 861 |
37*1 | 22.4 | 24.5 | 655 | 24.1 | 26.0 | 829 | 26.3 | 28.5 | 964 | 942 |
5*1.5 | 10.8 | 12.0 | 148 | 12.0 | 13.5 | 204 | 14.1 | 15.5 | 288 | 277 |
7*1.5 | 11.9 | 13.5 | 196 | 12.9 | 14.5 | 252 | 15.2 | 16.5 | 349 | 337 |
10*1.5 | 15.1 | 16.5 | 277 | 16.6 | 18.0 | 386 | 18.6 | 20.5 | 475 | 460 |
12*1.5 | 15.6 | 17.0 | 317 | 17.1 | 18.5 | 431 | 19.1 | 21.0 | 521 | 506 |
14*1.5 | 16.3 | 18.0 | 360 | 18.0 | 19.5 | 486 | 19.8 | 21.5 | 573 | 557 |
16*1.5 | 17.2 | 19.0 | 403 | 18.9 | 20.5 | 537 | 20.7 | 22.5 | 626 | 610 |
19*1.5 | 18.3 | 20.5 | 473 | 19.8 | 21.5 | 606 | 22.0 | 24.0 | 719 | 701 |
24*1.5 | 21.5 | 23.5 | 597 | 23.0 | 25.0 | 754 | 25.2 | 27.0 | 883 | 862 |
27*1.5 | 22.0 | 24.0 | 656 | 23.7 | 25.5 | 827 | 25.9 | 28.0 | 960 | 938 |
30*1.5 | 22.7 | 24.5 | 718 | 24.4 | 26.5 | 895 | 26.6 | 28.5 | 1032 | 1010 |
33*1.5 | 23.8 | 26.0 | 791 | 25.3 | 27.5 | 965 | 27.7 | 30.0 | 1119 | 1095 |
37*1.5 | 24.7 | 26.5 | 873 | 26.4 | 28.5 | 1065 | 28.6 | 31.0 | 1212 | 1188 |
5*2.5 | 12.1 | 13.5 | 209 | 13.1 | 14.5 | 266 | 15.4 | 17.0 | 364 | 352 |
7*2.5 | 13.1 | 14.5 | 272 | 14.1 | 15.5 | 335 | 16.4 | 18.0 | 439 | 426 |
10*2.5 | 16.7 | 18.5 | 386 | 18.4 | 20.0 | 516 | 20.2 | 22.0 | 604 | 588 |
12*2.5 | 17.3 | 19.0 | 447 | 19.0 | 20.5 | 581 | 20.8 | 22.5 | 671 | 654 |
14*2.5 | 18.3 | 20.0 | 518 | 19.8 | 21.5 | 651 | 22.0 | 24.0 | 765 | 747 |
16*2.5 | 19.3 | 21.0 | 582 | 21.0 | 23.0 | 732 | 23.0 | 25.0 | 841 | 822 |
19*2.5 | 20.5 | 22.5 | 684 | 22.0 | 24.0 | 833 | 24.2 | 26.0 | 958 | 938 |
24*2.5 | 24.1 | 26.0 | 863 | 25.6 | 27.5 | 1039 | 28.0 | 30.0 | 1194 | 171 |
27*2.5 | 24.6 | 26.5 | 953 | 26.3 | 28.5 | 1144 | 28.5 | 30.5 | 1291 | 1267 |
30*2.5 | 25.5 | 27.5 | 1045 | 27.2 | 29.5 | 1244 | 29.4 | 31.5 | 1395 | 1370 |
33*2.5 | 26.7 | 29.0 | 1151 | 28.2 | 30.5 | 1346 | 30.8 | 33.0 | 1529 | 1503 |
37*2.5 | 27.7 | 30.0 | 1273 | 29.4 | 31.5 | 1489 | 31.8 | 34.0 | 1666 | 1639 |
5.Pakket: houten vaten exporteren;(Marine Stroomkabels):
